Following on from the discussion about LOS, we have some queries about arcs.
This confusion is my fault. Apologies for that. The issue is one of precision, and things being added to the core rules (multi-base models) without being adequately accommodated in the small print.
I think the arcs digram on page 18 is clear enough. Works fine for 1-square models in adjacent squares. Larger models raise some questions.
As was pointed out, Large and Huge creatures cannot be entirely in either front or rear arc as this only extends 1 square from a model. So which arc are they in?
A few more diagrams should help. The red is the front arc of the central Hero, and the blue is rear.

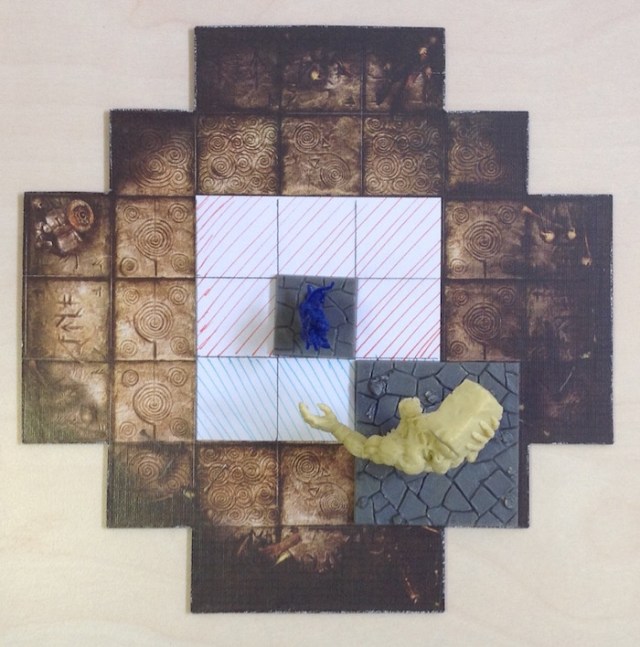

The Troll counts as being in the Hero’s front arc here:

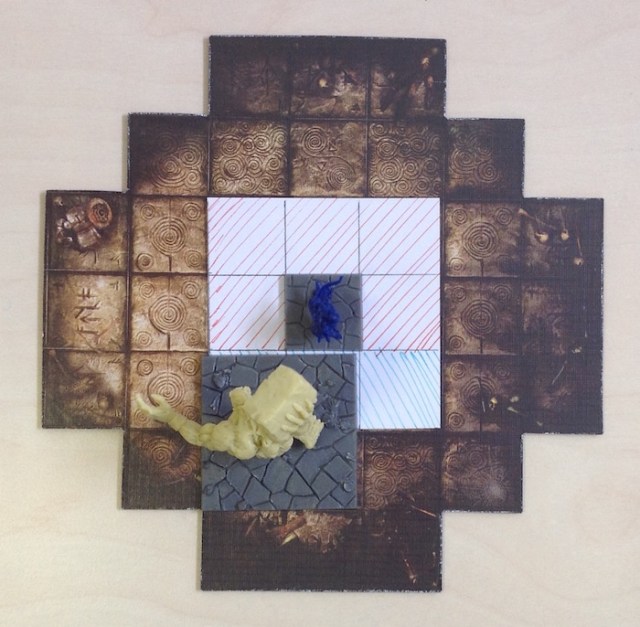

And in the rear arc here:
So, if any of the squares occupied by the base of the Large or Huge model are in the front arc of the target, then it is in the target’s front arc.
Otherwise, a Large or Huge model that occupies at least one square in a rear arc of the target is in its rear arc.
Does that help?
